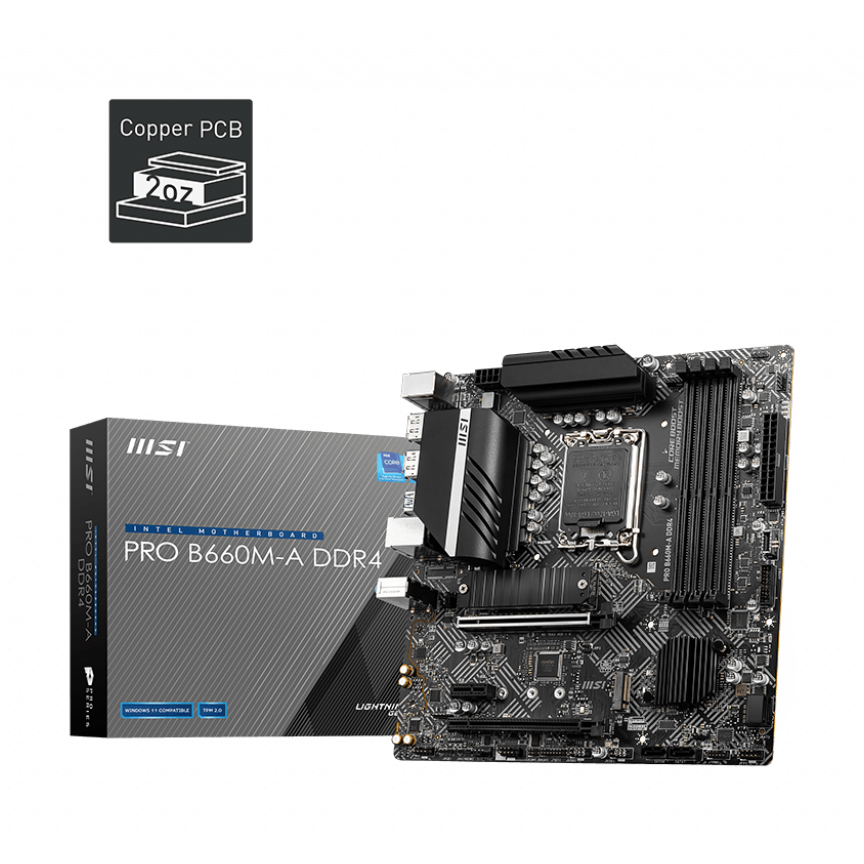

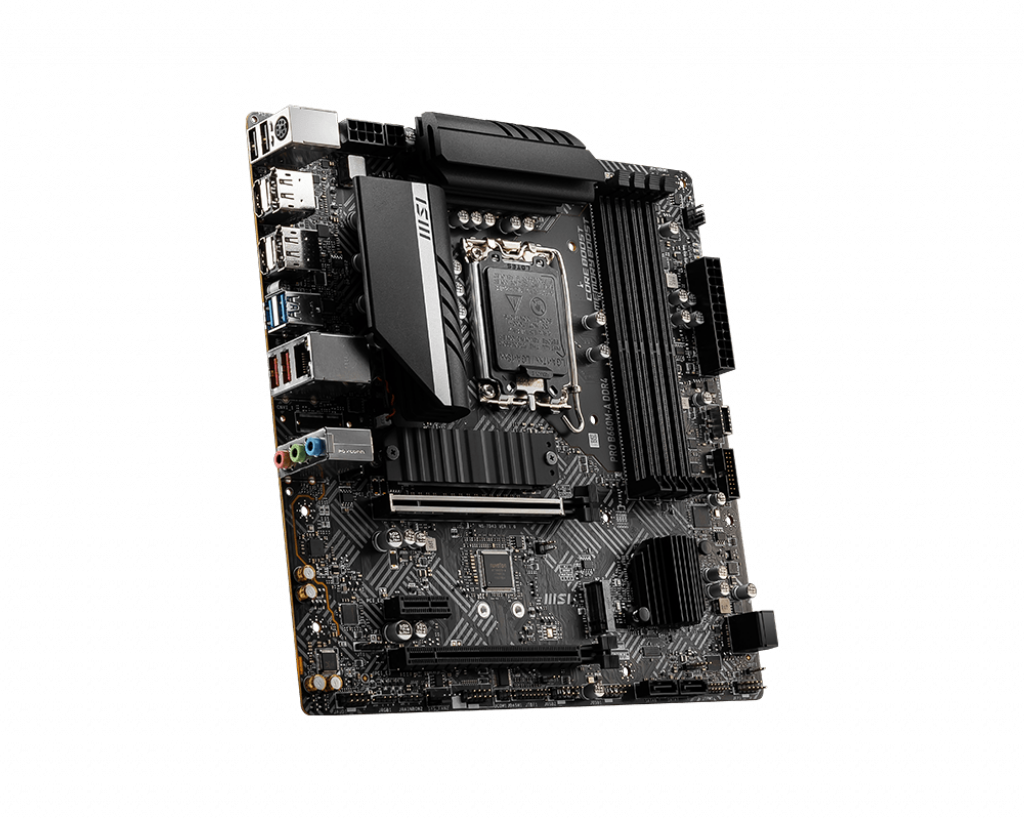

MAINBOARD MSI PRO B660M-A DDR4 Socket 1700 (เมนบอร์ด)


MSI PRO B660M-A DDR4

ซีรีส์ PRO ช่วยให้ผู้ใช้ทำงานได้อย่างชาญฉลาดยิ่งขึ้นด้วยการนำเสนอประสบการณ์ที่มีประสิทธิภาพและประสิทธิผล ด้วยฟังก์ชันการทำงานที่เสถียรและการประกอบคุณภาพสูง มาเธอร์บอร์ดซีรีส์ PRO ไม่เพียงแต่ให้เวิร์กโฟลว์ระดับมืออาชีพที่ปรับให้เหมาะสมเท่านั้น แต่ยังช่วยแก้ไขปัญหาและอายุการใช้งานที่น้อยลงอีกด้วย

4,750 ฿

PRO B660M-A DDR4

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality
การรับประกัน

2 ปี

คุณสมบัติ

Brand MSI
Model PRO B660M-A DDR4
CPU Support Supports 12th Gen Intel® Core™ Processors
Processor socket LGA1700
Socket 1700
Chipset Intel B660
Memory Support 4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
Max overclocking frequency:
– 1DPC 1R Max speed up to 4800+ MHz
– 1DPC 2R Max speed up to 4000+ MHz
– 2DPC 1R Max speed up to 4000+ MHz
– 2DPC 2R Max speed up to 3600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memoryy
Supports Intel® Extreme Memory Profile (XMP
Graphics 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz
2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60
Multi Graphic Support None
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots 2x PCIe x16 slots
PCI_E1 (From CPU)
– Support PCIe 4.0 x16
PCI_E3 (From B660 chipset)
– Support PCIe 3.0 x4
1x PCIe 3.0 x1 slot (Fom B660 chipset)
Storage 4x SATA 6Gb/s ports (From B660 chipset)
2x M.2 slots (Key M)
M2_1 slot (From CPU)
– Supports up to PCIe 4.0 x4
– Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 chipset)
– Supports up to PCIe 4.0 x4
– Supports up to SATA 6Gb/s
– Supports 2242/ 2260/ 2280 storage devices
– Supports Intel® Optane™ Memory
Support Intel® Smart Response Technology for Intel Core™ processors
USB Intel® B660 Chipset
2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
Asmedia ASM1074
2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector
Internal I/O Connectors 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Serial port
1x Tuning Controller connector
Back Panel Connectors 1x Keyboard / Mouse
2x DisplayPort
2x USB 3.2 Gen 1 5Gbps Type-A
1x LAN port
3x Audio connector
2x USB 2.0
2x HDMI
2x USB 3.2 Gen 2 10Gbps Type-A
LAN 1x Realtek® RTL8125BG 2.5Gbps LAN controller
Wireless Data Network None
Form Factor Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
H/W MONITORING N/A
BIOS N/A
Special Features N/A
Software Features N/A
Operating System Support Support for Windows® 11 64-bit, Windows® 10 64-bit
Dimension (W x D x H) : 24.40 x 24.40 x 4.50 cm
Net Weight 0.91 KG
Package Dimension (W x D x H) : 27.40 x 28.00 x 8.00 cm
Gross Weight 1.32 KG
Volume 6,137.60 cm3
