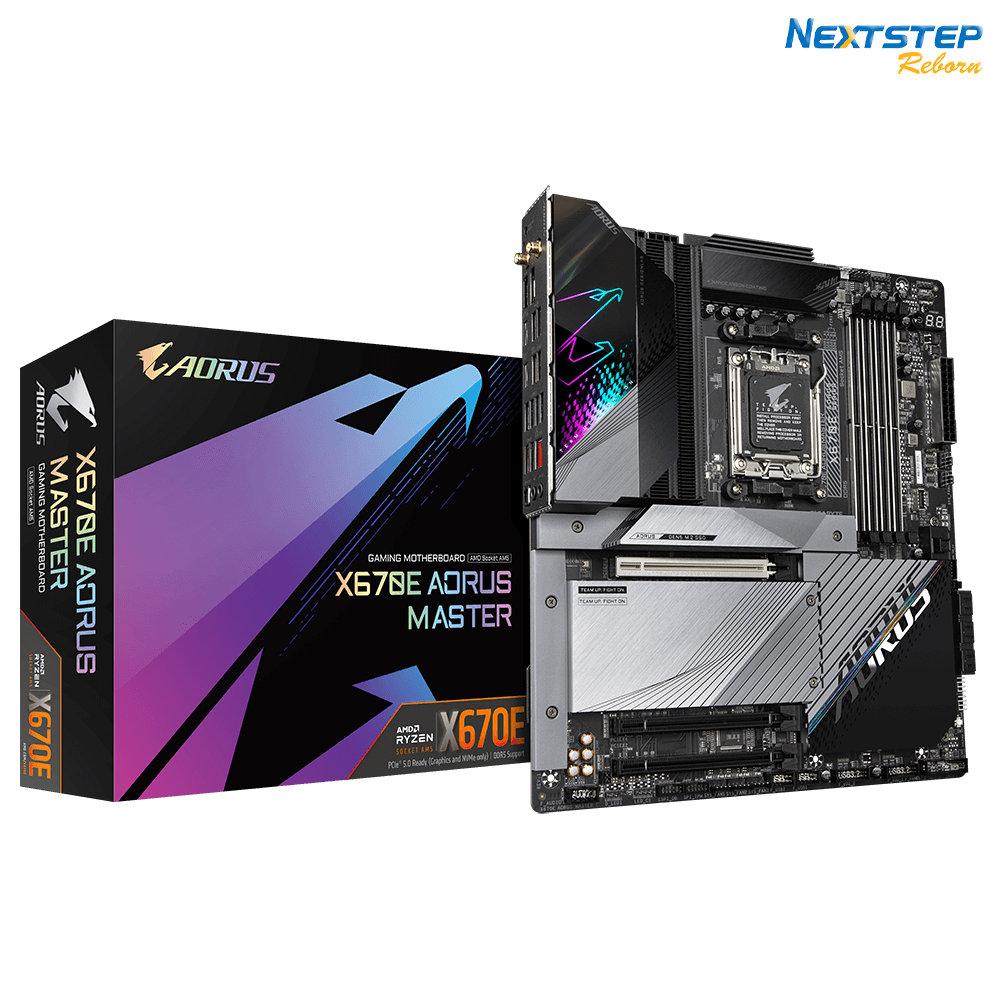

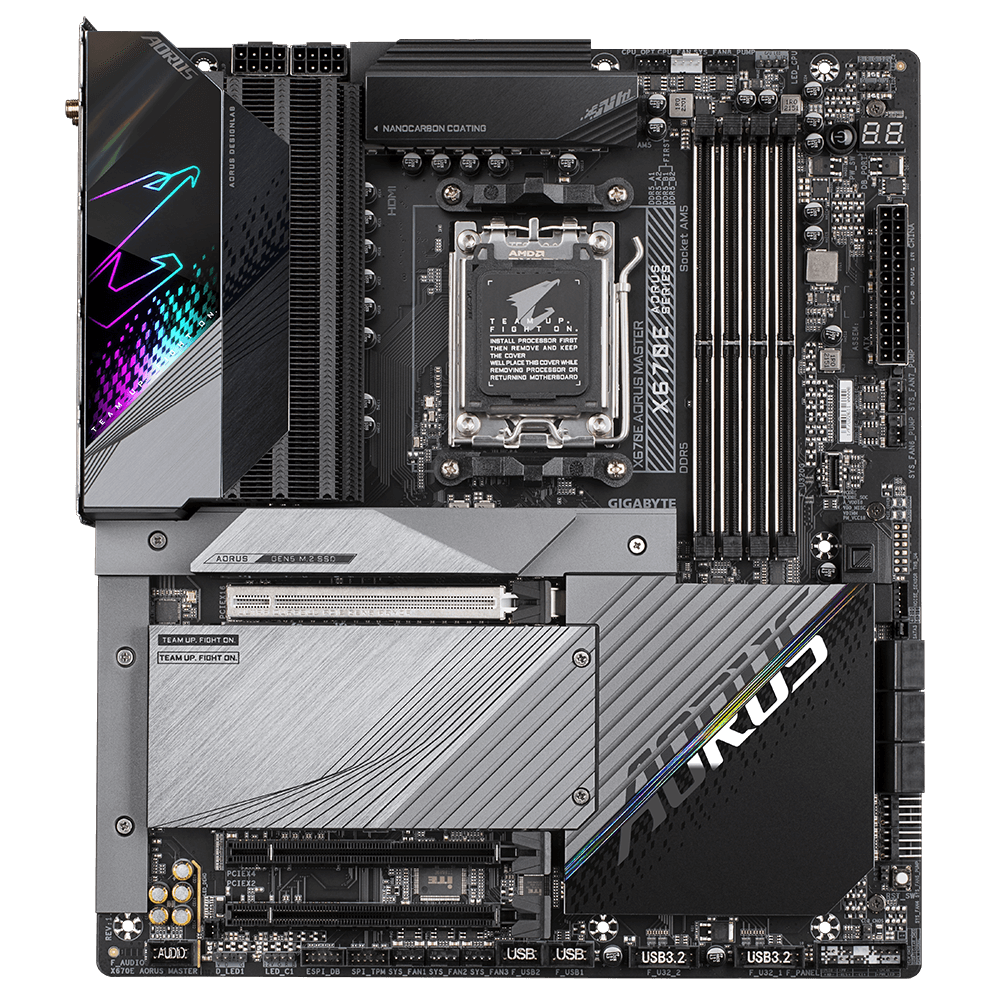

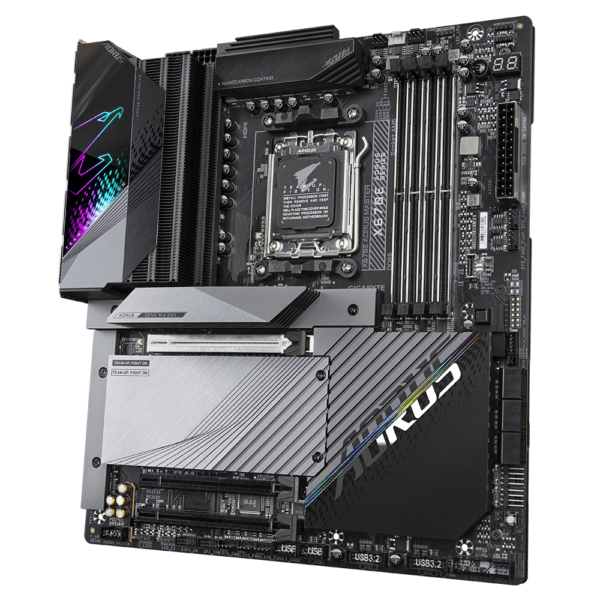

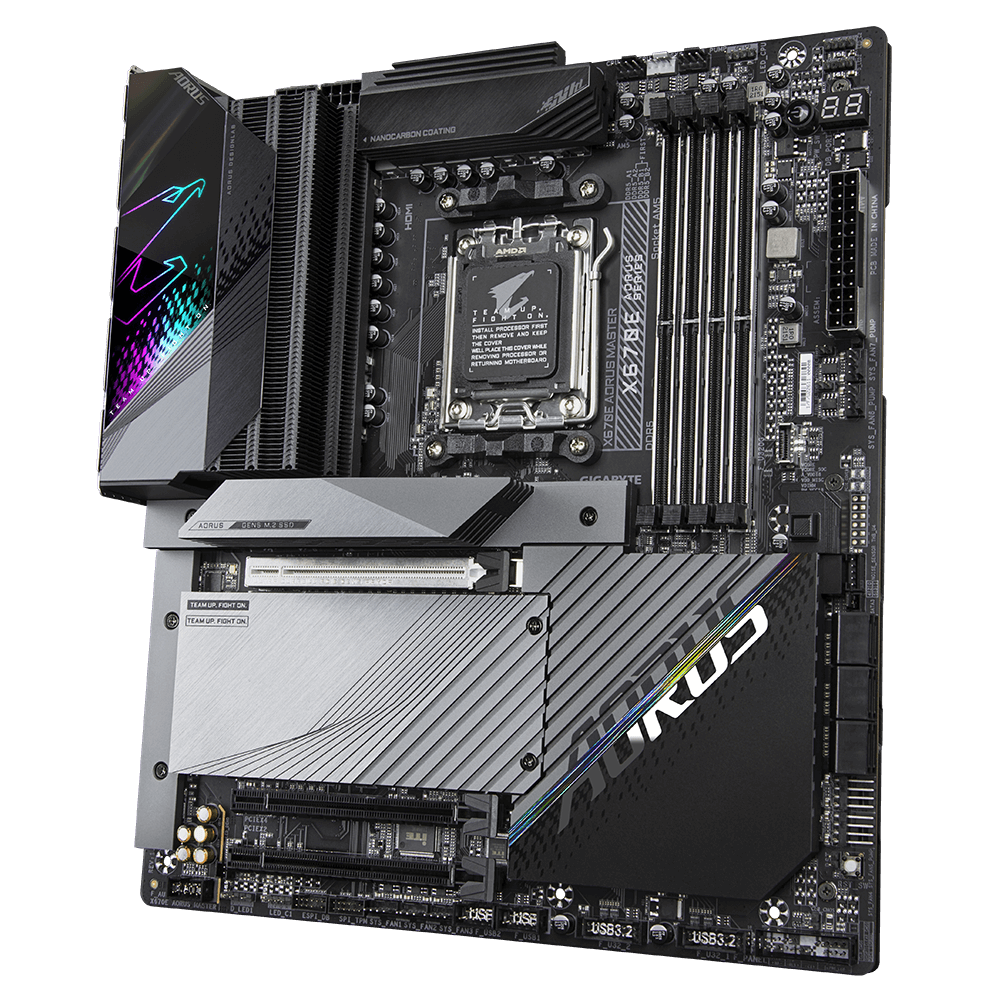

MAINBOARD GIGABYTE X670E AORUS MASTER (rev. 1.0) AM5

Availability:

สินค้าหมดแล้ว


GIGABYTE X670E AORUS MASTER

  • Socket AM5 Supports AMD Ryzen™ 7000 Series Processors
  • Solid Pin Power Connectors
  • Dual Channel SMD DDR5 Memory with Ultra Durable™ Armor
  • GIGABYTE Add-in Card Connector
  • Noise Detection
  • Smart Fan 6
  • Multi-key
  • Advanced Thermal Design
  • Design Ready for PCI Express 5.0

GIGABYTE X670E AORUS MASTER
GIGABYTE X670 AORUS MASTER AM5 RYZEN 7000 SERIES



MAINBOARD (AM5) GIGABYTE X670E AORUS MASTER (rev. 1.0)

น้ำหนัก 2 kg
การรับประกัน

3 ปี

Brand GIGABYTE
Model X670E AORUS MASTER (rev. 1.0)
CPU Support
  1. AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors

(Please refer “CPU Support List” for more information.)

Socket AM5
Chipset AMD X670
Memory Support
  1. Support for DDR5 5200/4800/4400 MHz memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module

(Please refer “Memory Support List” for more information.)

Graphics Integrated Graphics Processor:

  1. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
    * Support for DisplayPort 1.4 version and HDR.
  2. 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
    * Support for DisplayPort 1.4 version and HDR.
  3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Audio
  1. Realtek® ALC1220-VB CODEC
    * The back panel line out jack supports DSD audio.
  2. Support for DTS:X® Ultra
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel output
    * You can change the functionality of an audio jack using the audio software. To configure
    7.1-channel audio, access the audio software for audio settings.
  5. Support for S/PDIF Out
Expansion Slots CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
    * Actual support may vary by CPU.
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
    * The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot.

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
    * Actual support may vary by CPU.
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
    * Actual support may vary by CPU.

Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
  2. 6 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB CPU:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

  1. 2 x USB 2.0/1.1 ports on the back panel

Chipset:

  1. 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
  4. 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 4 x system fan headers
  6. 4 x system fan/water cooling pump headers
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 4 x M.2 Socket 3 connectors
  11. 6 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
  15. 2 x USB 3.2 Gen 1 headers
  16. 2 x USB 2.0/1.1 headers
  17. 1 x noise detection header
  18. 1 x THB_U4 add-in card connector
  19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  20. 1 x power button
  21. 1 x reset button
  22. 1 x reset jumper
  23. 1 x Clear CMOS jumper
  24. 2 x temperature sensor headers
  25. Voltage Measurement Points

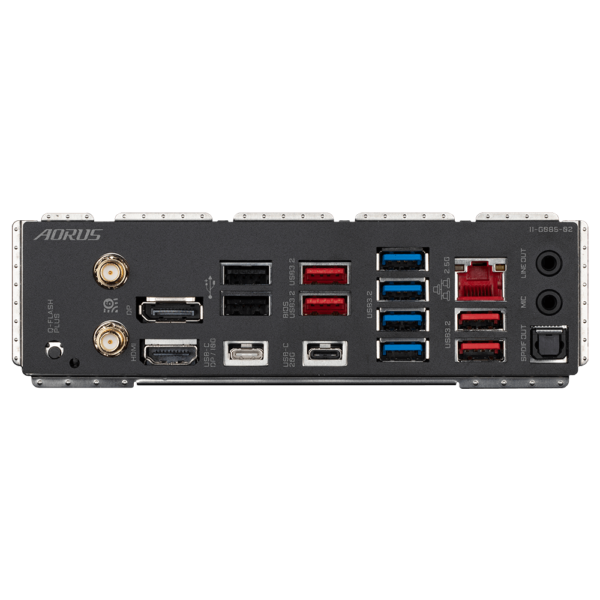

Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x DisplayPort
  4. 1 x HDMI 2.0 port
  5. 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
  6. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  7. 4 x USB 3.2 Gen 2 Type-A ports (red)
  8. 4 x USB 3.2 Gen 1 ports
  9. 2 x USB 2.0/1.1 ports
  10. 1 x RJ-45 port
  11. 1 x optical S/PDIF Out connector
  12. 2 x audio jacks
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Data Network Intel® Wi-Fi 6E AX210

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
Form Factor E-ATX Form Factor; 30.5cm x 26.9cm
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
  7. Noise detection
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features
  1. Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
  4. Support for Smart Backup
Software Features
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System Support
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
