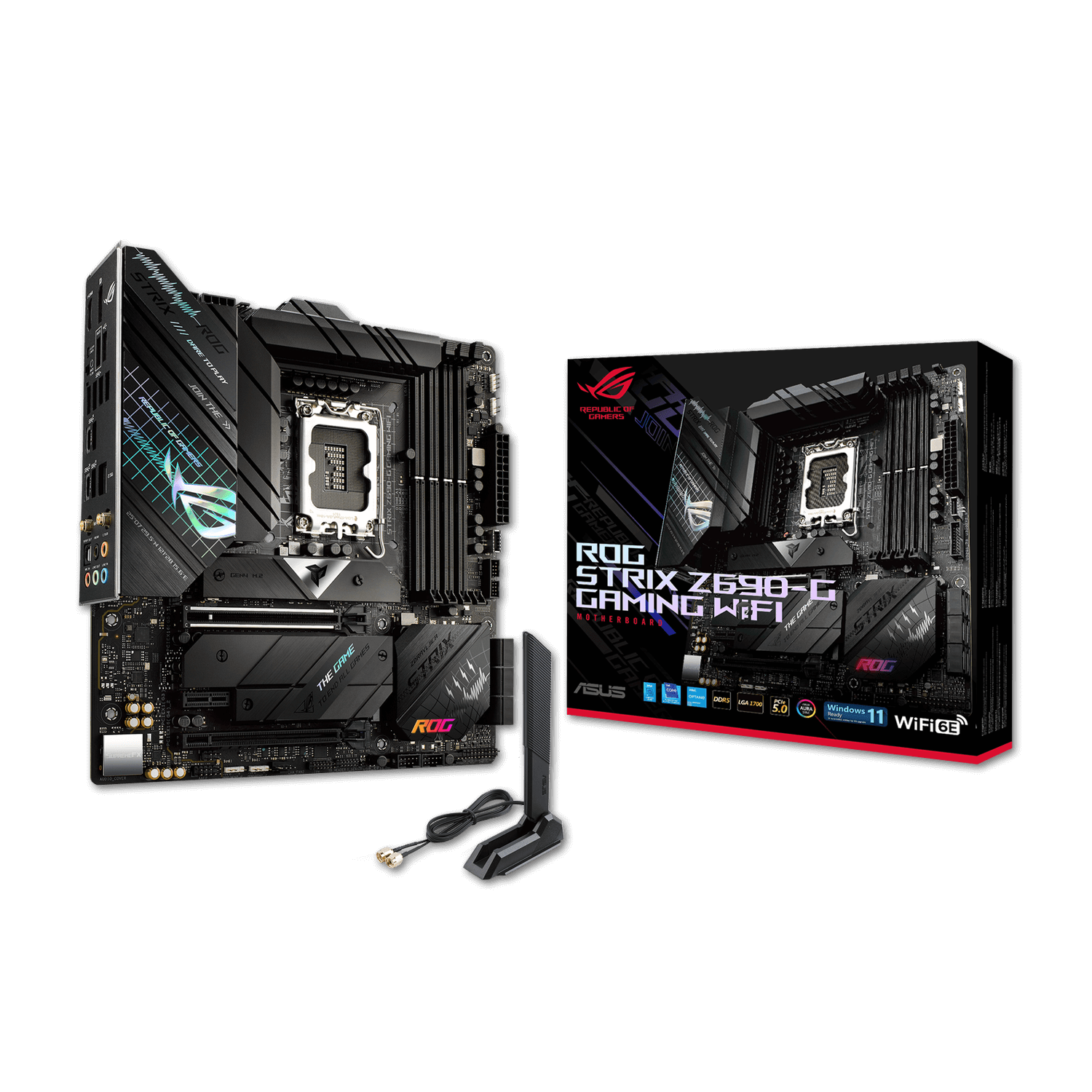

MAINBOARD ASUS ROG STRIX Z690-G GAMING WIFI SOCKET LAG 1700 (เมนบอร์ด)
Availability:
สินค้าหมดแล้ว
ROG Strix Z690-G Gaming WiFi เป็นตัวเลือกแรกสำหรับผู้ที่ชื่นชอบการสร้างการตั้งค่า mATX ขนาดกะทัดรัด การส่งพลังงานระดับพรีเมียม การระบายความร้อน และมาตรฐานเครือข่ายล่าสุดได้รับการบรรจุไว้เพื่อใช้งานควบคู่ไปกับ DDR5 และ PCIe 5.0 ซึ่งปลดปล่อยพลังเต็มที่ของ โปรเซสเซอร์ Intel ® Core™ เจนเนอ เรชั่น 12 และที่ชั้นบนสุดมีสแต็คการควบคุมอัจฉริยะเฉพาะของ ASUS เพื่อเพิ่มประสิทธิภาพทุกด้านของประสิทธิภาพของระบบ
ROG STRIX Z690-G GAMING WIFI
Intel® Z690 LGA 1700 mATX motherboard with PCIe® 5.0, 14+1 DrMos, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel® 2.5 Gb Ethernet, three M.2 slots with heatsinks, PCIe® 4.0 NVMe® SSD support, M.2 backplates, USB 3.2 Gen 2×2 Type-C®, SATA and AURA Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
- Optimal Power Solution: 14+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, three onboard M.2 heatsinks, and M.2 backplates for two M.2 slots
- High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2×2 Type-C®
- Intelligent Control: ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
ROG STRIX Z690-G GAMING WIFI
| การรับประกัน | 2 ปี |
|---|
คุณสมบัติ
| Brand | ASUS |
| Model | ROG STRIX Z690-G GAMING WIFI |
| CPU Support |
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 10 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Socket | LGA1700 |
| Chipset | Z690 |
| Memory Support |
4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics |
1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 8K@60Hz as specified in DisplayPort 1.4. *** Support 4K@60Hz as specified in HDMI 2.1. |
| Multi Graphic Support | N/A |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |
| Expansion Slots |
Intel® 12th Gen Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel® Z690 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot |
| Storage |
Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports *** * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. *** RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports. |
| USB |
Rear USB:Total 10 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Back Panel Connectors |
Rear USB:Total 10 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| LAN |
N/A
|
| Wireless Data Network |
Intel® Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| Form Factor |
microATX
24.4cm x 24.4cm
|
| H/W MONITORING | N/A |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Special Features | Extreme Engine Digi+
– 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – CPU Socket lever protector – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 RGB headers |
| Software Features | ROG Exclusive Software
– GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound – Anti-virus software ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation AI Suite 3 – 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| Operating System Support | Windows 10 64bit |
| Dimension | N/A |
| Net Weight | N/A |
| Package Dimension | N/A |
| Gross Weight | N/A |
| Volume | N/A |
