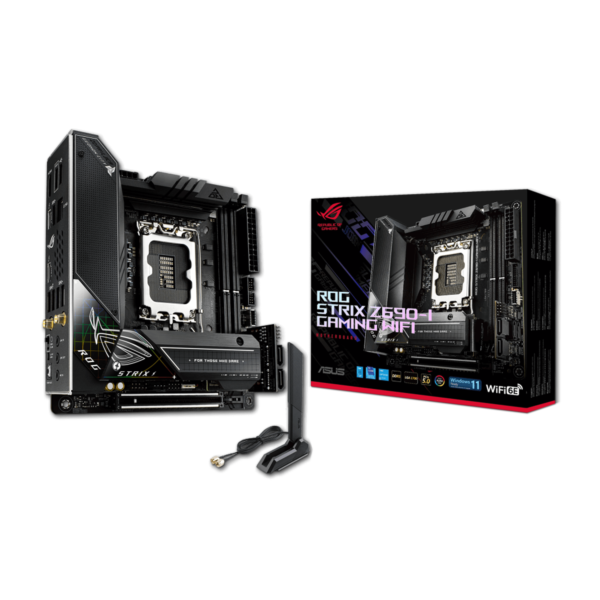

MAINBOARD ASUS ROG STRIX Z690-I GAMING WIFI SOCKET LAG 1700 (เมนบอร์ด)

Availability:

สินค้าหมดแล้ว
Add to wishlist
Compare

ROG Strix Z690-I Gaming WiFi

บรรจุการจ่ายพลังงานระดับพรีเมียมและการระบายความร้อนแบบสามชั้นลงในฟอร์มแฟกเตอร์ mini-ITX ขนาดกะทัดรัดเพื่อปลดปล่อยพลังอย่างเต็มที่ของโปรเซสเซอร์ Intel ® Core™ เจน เนอเรชั่น 12 อัตราเฟรมและเวลาในการโหลดสามารถเพิ่มขึ้นได้อีกด้วยการรองรับหน่วยความจำ DDR5 และ PCIe ® 5.0 ใหม่ทั้งหมด นอกจากนี้ สล็อตออนบอร์ด WiFi 6E และ PCIe 4.0 M.2 ยังให้ประสิทธิภาพการทำงานที่รวดเร็วดุจสายฟ้าสำหรับสถานการณ์ที่หลากหลายไม่รู้จบ เหนือสิ่งอื่นใด นวัตกรรมที่เป็นมิตรกับ DIY ช่วยลดความซับซ้อนของกระบวนการสร้างพีซี ดังนั้นแม้แต่ผู้สร้างมือใหม่ก็สามารถเล่นเกมอย่างจริงจังได้อย่างรวดเร็ว

ROG STRIX Z690-I GAMING WIFI

Intel® Z690 LGA 1700 ITX motherboard with PCIe® 5.0, 10+1 power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel® 2.5 Gb Ethernet, two M.2 slots with heatsinks and backplates, two Thunderbolt™ 4 USB Type-C®, SATA and Aura Sync RGB lighting

  • Intel®LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
  • Optimal Power Solution: 10+1 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, two onboard M.2 heatsinks and backplates
  • High-performance Networking:On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI® 2.1, two M.2 slots, 2 x ThunderboltTM 4 as well as 1 x USB 3.2 Gen 2×2 Type-C®
  • Intelligent Control:  ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation to simplify setup and improve performance
  • DIY Friendly Design: Bundled ROG Front Panel SATA Card, M.2 Q-Latch, Pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and two addressable Gen 2 headers
  • Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
Post Views: 1,059
รหัสสินค้า: NS06732 หมวดหมู่: , , , ป้ายกำกับ: , , , ,

ROG STRIX Z690-I GAMING WIFI

การรับประกัน

2 ปี

คุณสมบัติ

Brand ASUS
Model ROG STRIX Z690-I GAMING WIFI
CPU Support
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Socket LGA1700
Chipset
Z690
Intel® Z690 Chipset
Memory Support

2 x DIMM, Max. 64GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

*Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics
1 x HDMI 2.1
2 x Intel® Thunderbolt™ 4 ports
Multi Graphic Support N/A
Audio

“ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

– Impedance sense for front and rear headphone outputs

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

– Supports up to 32-Bit/384 kHz playback”

Audio Features

– SupremeFX Shielding Technology

– Savitech SV3H712 AMP

– LED-illuminated audio jacks

– Rear optical S/PDIF out port

– Premium audio capacitors

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots

Intel® 12th Gen Processors*

1 x PCIe 5.0 x16 slot(s)***

* Please check PCIe bifurcation table in support site.
Storage

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports*

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

– Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® Z690 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports***

* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

*** Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s ports
USB

Rear USB (Total 9 ports)

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®)

2 x USB 3.2 Gen 2 port(s) (2 x Type-A)

3 x USB 3.2 Gen 1 port(s) (3 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

Front USB (Total 5 ports)

1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin AIO Pump header(s)

1 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2×2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

Miscellaneous

1 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x 2 pin POWER_BTN header

2 x USB Type-C® connectors to Install ROG Strix Front panel SATA card*

* Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s ports, 1 x Addressable Gen 2 header, 1 x Front Panel header and 1 x Speaker header.
Back Panel Connectors

2 x Thunderbolt™ 4 USB Type-C® port(s)

2 x USB 3.2 Gen 2 port(s) (2 x Type-A)

3 x USB 3.2 Gen 1 port(s) (3 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

LED-illuminated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button
LAN
N/A
Wireless Data Network
Intel® Wi-Fi 6E

“Wi-Fi 6E

2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. ”
Form Factor
Mini ITX
17cm x 17cm
H/W MONITORING N/A
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Special Features

Extreme Engine Digi+

– 5K Black Metallic Capacitors

ASUS Q-Design

– M.2 Q-Latch

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink backplate

– M.2 heatsink

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– Clear CMOS button

– CPU Socket lever protector

– ProCool II

– Pre-mounted I/O shield

– SafeSlot

– SafeDIMM

AURA Sync

– AURA RGB header(s)

– Addressable Gen 2 header(s)
Software Features ROG Exclusive Software

– GameFirst VI

– ROG CPU-Z

– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

– Sonic Radar III

– DTS® Sound Unbound

– Anti-virus software

ASUS Exclusive Software

Armoury Crate

– AIDA64 Extreme (60 days free trial)

– AURA Creator

– AURA Sync

– Fan Xpert 4

– Two-Way AI Noise Cancelation

AI Suite 3

– Easy Optimization with AI Overclocking

TPU

EPU

DIGI+ VRM

Turbo app

MyAsus

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

FlexKey

MemTest86
Operating System Support Windows 10 64bit
Dimension N/A
Net Weight N/A
Package Dimension N/A
Gross Weight N/A
Volume N/A
