MAINBOARD ASUS TUF GAMING Z590-PLUS WIFI Socket 1200 (เมนบอร์ด)

Availability:

มีสินค้า


ASUS TUF GAMING Z590-PLUS WIFI

ใช้องค์ประกอบที่จำเป็นทั้งหมดของโปรเซสเซอร์ Intel® ล่าสุด และรวมเข้ากับคุณสมบัติที่พร้อมใช้งานสำหรับเกมและความทนทานที่ได้รับการพิสูจน์แล้ว เมนบอร์ดนี้ได้รับการออกแบบทางวิศวกรรมด้วยส่วนประกอบระดับเดียวกับทางการทหาร โซลูชันด้านพลังงานที่ได้รับการอัพเกรด และระบบระบายความร้อนที่ครอบคลุม ให้ประสิทธิภาพการทำงานที่มั่นคงและเสถียรสำหรับการเล่นเกมแบบมาราธอน สวยงาม TUF GAMING Z590-PLUS WIFI สวมโลโก้ TUF Gaming ใหม่และรวมเอาองค์ประกอบการออกแบบทางเรขาคณิตที่เรียบง่ายเพื่อสะท้อนถึงความเชื่อถือได้และความเสถียรที่กำหนดชุด TUF Gaming

5,490 ฿ 5,790 ฿

มีสินค้า

ASUS TUF GAMING Z590-PLUS WIFI

เมนบอร์ดเกมมิ่ง Intel® Z590 (LGA 1200) ATX ที่มี 16 DrMOS power stages, PCIe® 4.0, สล็อต M.2 สามสล็อต, Intel® WiFi 6 และ 2.5 Gb Ethernet, HDMI®, DisplayPort™, USB 3.2 Gen 2×2 Type-C®, SATA 6 Gbps, แผงด้านหน้า USB 3.2 Gen 1 Type C®, รองรับ Thunderbolt™ 4 และแสง Aura Sync RGB
  • ซ็อกเก็ต Intel ® LGA 1200: รองรับ Intel ® Core™ 10th และ 11th gen
  • Enhanced power solution: 14+2 DrMOS power stages, six-layer PCB, ProCool sockets ส่วนประกอบ TUF เกรดทหาร และ Digi+ VRM ทำได้จริง ไม่เชื่อ
  • Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers และ Fan Xpert 4 utility
  • การเชื่อมต่อยุคหน้า: PCIe ® 4.0, USB 3.2 Gen 2×2 Type-C ® , หัวต่อที่แผงด้านหน้าสำหรับ USB 3.2 Gen 1 Type-C ®และรองรับ Thunderbolt 4™
  • สร้างมาเพื่อการเล่นเกมออนไลน์: Intel ® WiFi 6, Intel ® 2.5 Gb Ethernet, เทคโนโลยี TUF LANGuard และ TurboLAN
  • การยกเลิกสัญญาณรบกวน AI แบบสองทาง: ระบบควบคุมการท้าทายของไมโครโฟนระบบเสียง …
  • Realtek S1200A codec: เข็ดขืนสินค้าที่มีคุณภาพดีด้วยคะแนนโหวต 108 dB ต่อลำโพงออกและ 103 dB SNR สายสัญญาณเข้า





น้ำหนัก 2 kg
การรับประกัน

2 ปี

คุณสมบัติ

ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– Enhanced DRAM Overcurrent Protection
– TUF LANGuard
– Overvoltage Protection
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
– Pre-mounted I/O shield
– SafeSlot
AURA Sync
– AURA RGB headers
– Addressable Gen 2 RGB headers

Brand ASUS
Model ASUS TUF GAMING Z590-PLUS WIFI
CPU Support Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Socket 1200
Chipset Intel Z590
Memory Support 4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics 1 x DisplayPort 1.4**
1 x HDMITM 2.0***
* Graphics specifications may vary between CPU types.
** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
*** Only Intel® 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Multi Graphic Support None
Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium Japanese audio capacitors
– Dedicated audio PCB layers
– Audio cover
Expansion Slots Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot*
– Intel® 11th processors support PCIe 4.0 x16
– Intel®10th processors support PCIe 3.0 x16
Intel® Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)****
6 x SATA 6Gb/s ports
* Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
*** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
**** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.
USB Rear USB (Total 7 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header

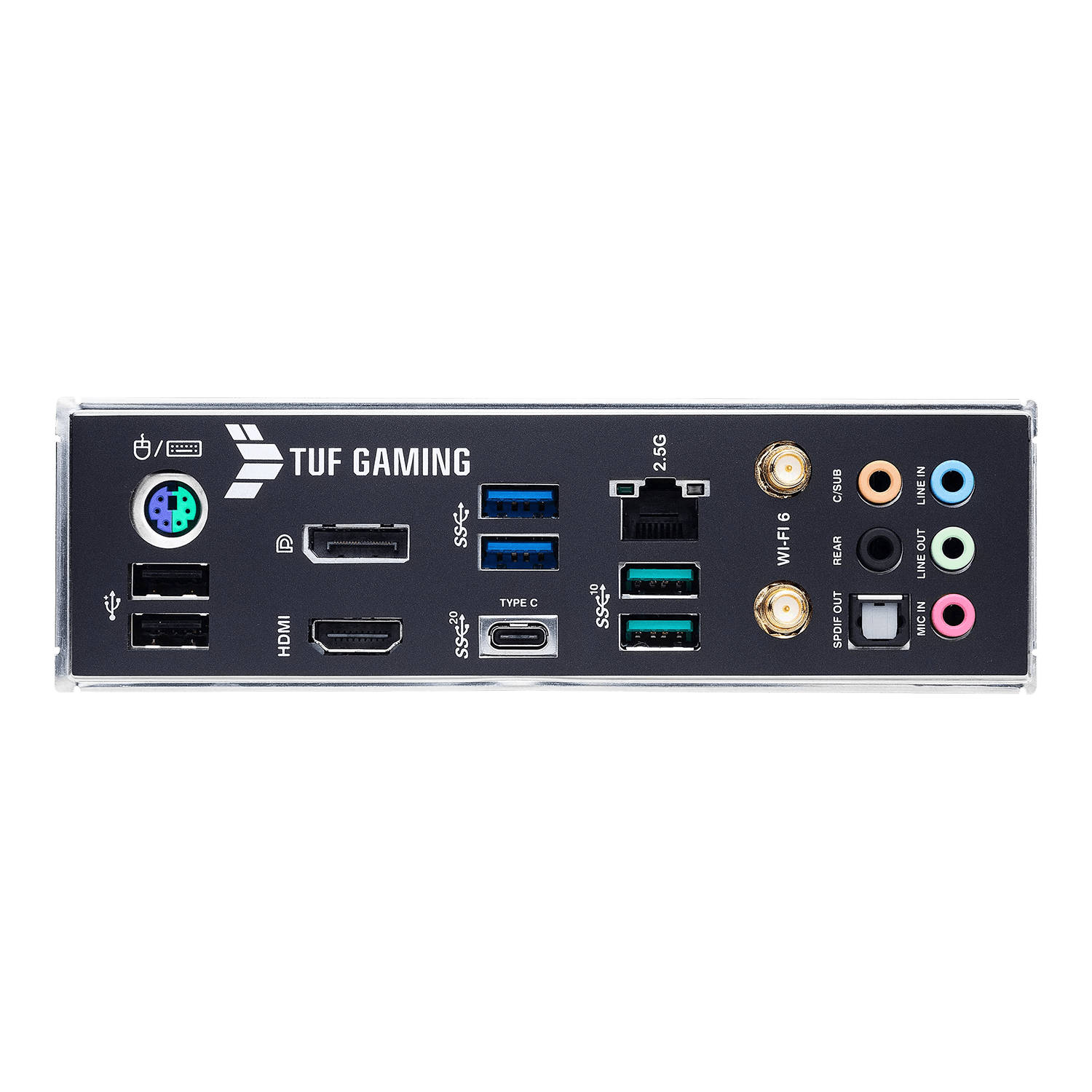

Back Panel Connectors 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x ASUS Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
LAN 1 x Intel® I225-V 2.5Gb Ethernet
TUF LANGuard
Wireless Data Network None
Form Factor ATX
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
H/W MONITORING N/A
BIOS N/A
Special Features A
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRARUEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Operating System Support Windows 10 64bit
Dimension 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Net Weight N/A
Package Dimension N/A
Gross Weight N/A
Volume N/A
