MAINBOARD BIOSTAR B560MX-E PRO SOCKET 1200 (เมนบอร์ด)

Availability:

มีสินค้าอยู่ 4


เซ็ต Intel B560 ด้วยชิปเซ็ต Intel® B560 และ โปรเซสเซอร์ Intel® Core™ i9 / i7/ i5/ i3 รุ่นที่ 10/11 รุ่นที่ 10/11 และโปรเซสเซอร์ Intel® Pentium® คุณจะอยู่แถวหน้าของสนามรบทันที เติมพลังด้วยพลังอันน่าทึ่ง และประสิทธิภาพ ตั้งแต่การสร้างเนื้อหาไปจนถึงการเล่นเกม ชิปเซ็ต Intel B560 มอบพลังและประสิทธิภาพที่คุณต้องการ

2,890 ฿

มีสินค้าอยู่ 4

B560MX-E PRO Ver. 6.0

Socket : 1200

  • Supports 10th/ 11th Generation Intel Core™ Processor
  • Intel B560 single chip architecture
  • Supports 4-DIMM DDR4- 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4000+(OC) up to 128 GB Memory
  • Supports PCIe 4.0
  • Supports PCIe M.2 4.0 (64Gb/s)
  • Supports Intel Optane Technology
  • Supports USB 3.2 Gen1
  • Supports WiFi 6 module (No WiFi 6 card included)
  • Supports HDMI 1.4 4K resolution
รหัสสินค้า: 802700508905 หมวดหมู่: , , , ป้ายกำกับ: , , ,

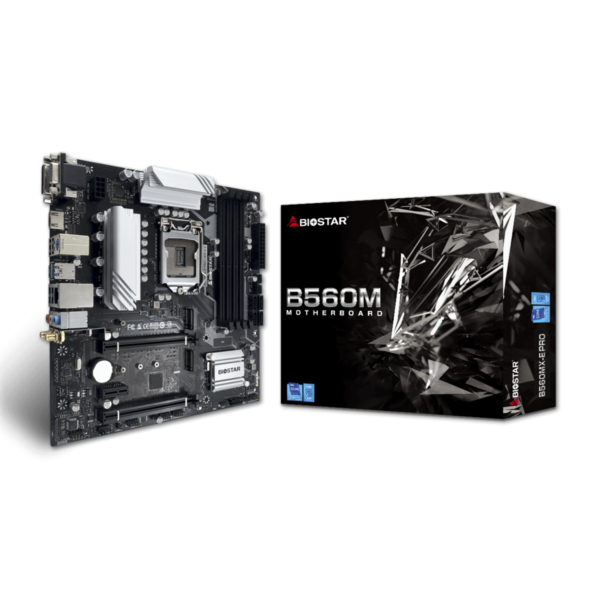

BIOSTAR B560MX-E PRO

การรับประกัน

2 ปี

คุณสมบัติ

Brand BIOSTAR
Model B560MX-E PRO
CPU Support Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/

Intel Celeron processors in the LGA1200 package

* Please refer to www.biostar.com.tw for CPU support list.

Socket 1200
Chipset Intel B560
Memory Support Supports Dual Channel DDR4 4000+(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3200/2933/2666/2400/2133

4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory

Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

* Please refer to www.biostar.com.tw for Memory support list.

Graphics By CPU model
Supports DX12
Supports HDCP
Multi Graphic Support N/A
Audio ALC897

7.1 Channels, High Definition Audio, Hi-Fi(Front)

Expansion Slots 1 x PCIe 3.0 x1 Slot
1 x PCIe 4.0 x16 Slot (x16 mode)
1 x PCIe 3.0 x16 Slot (x4 mode)
Storage — Total supports 2 x M.2 socket and 4 x SATA III (6Gb/s) ports

4 x SATA III Connector (6Gb/s) : Supports AHCI & Intel Rapid Storage Technology

1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY):

Supports M.2 Type 2280 SSD module

Supports PCIe 4.0 x 4 (64Gb/s)

Support 11th Gen processor only

1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST1):

Supports M.2 Type 2242/ 2260/ 2280 SSD module

Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD

Supports Intel Optane Technology

* M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only.

USB 6 x USB 3.2(Gen1) port (4 on rear I/Os and 2 via internal headers)

6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)

Internal I/O Connectors 4 x SATA III Connector (6Gb/s)

1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi

2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x CPU water cooling connector (CPU_OPT)

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Header

1 x COM Port Header

1 x TPM Header

* M.2 (E key) Wi-Fi card is not provided

Back Panel Connectors 2 x WIFI Antenna Port
1 x PS/2 Keyboard/ Mouse Port
1 x VGA Port
1 x DVI-D Port
1 x HDMI 1.4 Port
4 x USB 3.2 (Gen1) port
2 x USB 2.0 port
1 x LAN port
3 x Audio Jack
LAN Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Wireless Data Network N/A
Form Factor Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
BIOS N/A
Special Features BIO-FLASHER
BullGuard
Software Features BullGuard
Operating System Support Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
Dimension

Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )

Net Weight N/A
Package Dimension N/A
Gross Weight N/A
Volume N/A
