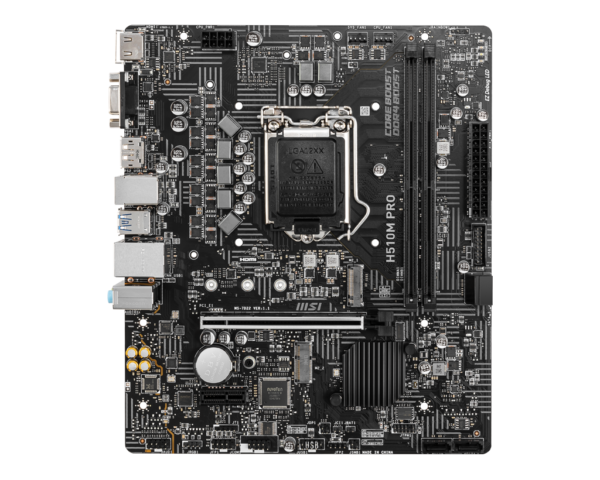

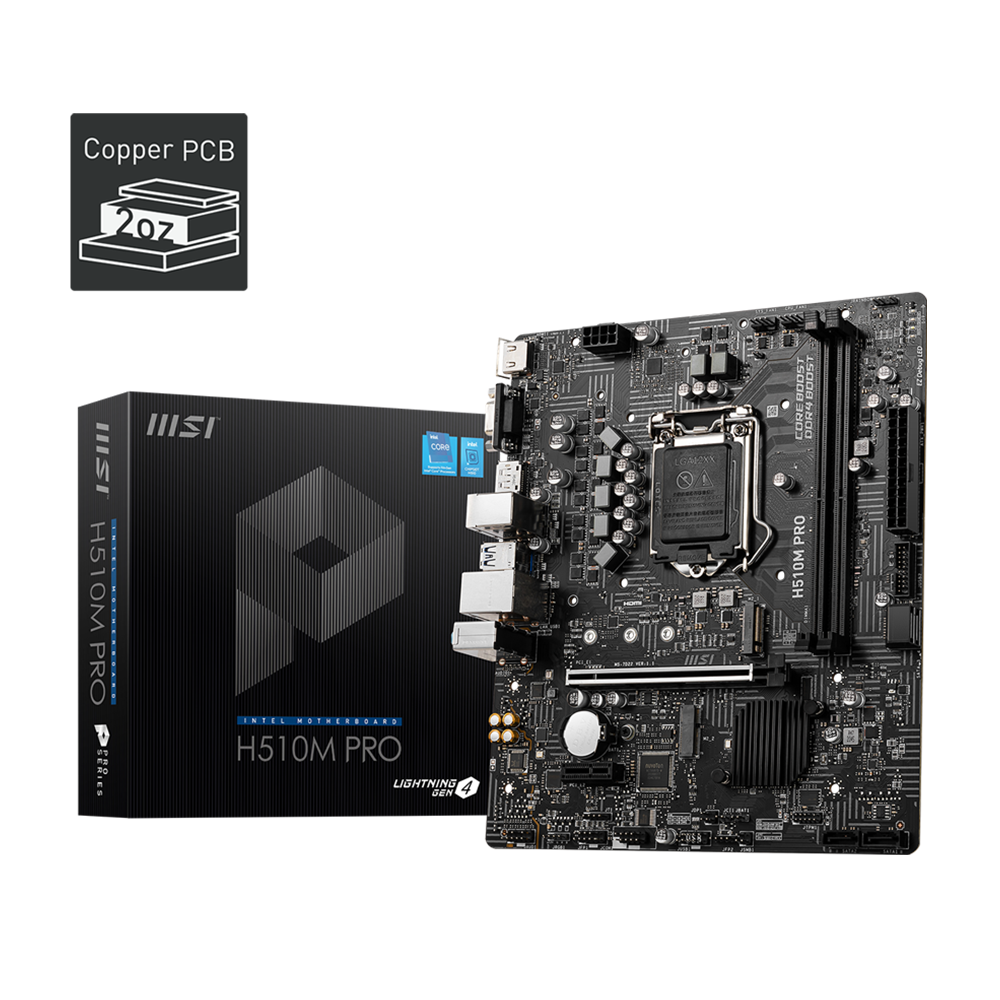

MAINBOARD MSI H510M PRO Socket 1200 (เมนบอร์ด)




ซีรีส์ PRO ช่วยให้ผู้ใช้ทำงานได้อย่างชาญฉลาดยิ่งขึ้นด้วยการนำเสนอประสบการณ์ที่มีประสิทธิภาพและประสิทธิผล ด้วยฟังก์ชันการทำงานที่เสถียรและการประกอบคุณภาพสูง มาเธอร์บอร์ดซีรีส์ PRO ไม่เพียงแต่ให้เวิร์กโฟลว์ระดับมืออาชีพที่ปรับให้เหมาะสมเท่านั้น แต่ยังช่วยแก้ไขปัญหาและอายุการใช้งานที่น้อยลงอีกด้วย


  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 3200(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience: PCIe 4.0
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

2 ปี


Brand MSI
Model H510M-A PRO
CPU Support Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Socket 1200
Chipset Intel H510
Memory Support 2 x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Graphics 1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz *,**
1 x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz ** Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support None
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots 1 x PCIe x16 slot (From CPU)
– Support up to PCIe 4.0 for 11th Gen Intel® CPU
– Support up to PCIe 3.0 for 10th Gen Intel® CPU
1 x PCIe 3.0 x1 slot (From PCH)
1 x M.2 slot with E key for WiFi module only(M2_2)
Storage 4 x SATA 6Gb/s ports (From H510 Chipset)
1 x M.2 slot (Key M)
M2_1 slot (From H510 Chipset) *
– Supports up to PCIe 3.0 x4
– Supports 2242/ 2260/ 2280 storage devices
* SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB Intel® H510 Chipset
4 x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x TPM module connector
Back Panel Connectors 1 x HDMI
1 x VGA
1 x Mouse / Keyboard
1 x LAN port
3 x Audio connector
4 x USB 2.0
2 x USB 3.2 Gen 1 5Gbps Type-A
LAN 1 x Intel® I219V 1Gbps LAN controller
Wireless Data Network None
Form Factor mATX Form Factor
9.29 x 7.95 in. (23.6 cm x 20.2 cm)
Special Features N/A
Software Features N/A
Operating System Support Support for Windows 10 64-bit
Dimension (W x D x H) : 20.20 x 23.60 x 3.60 cm
Net Weight 0.45 KG
Package Dimension (W x D x H) : 25.80 x 26.00 x 5.50 cm
Gross Weight 0.73 KG
Volume 3,689.40 cm3
