ด้วยโปรเซสเซอร์ของคอร์ที่มากขึ้น การออกแบบการระบายความร้อนและพลังงานจึงมีความสำคัญมากขึ้นเพื่อให้แน่ใจว่าอุณหภูมิจะต่ำลง ฮีทซิงค์ PWM แบบขยายของ MSI และการออกแบบวงจรที่ได้รับการปรับปรุงช่วยให้มั่นใจได้ว่าซีพียู Intel ระดับไฮเอนด์จะทำงานด้วยความเร็วเต็มที่กับมาเธอร์บอร์ด MSI

พื้นผิวด้วยเทคโนโลยี MU-MIMO ที่แท้จริง
โซลูชัน Wi-Fi 6E ล่าสุดรองรับคลื่นความถี่ 6GHz, Bluetooth 5.2, เทคโนโลยีสี MU-MIMO แบบสองทางและ BSS ให้ความจุเครือข่ายสูงสุด 4 เท่าและประสิทธิภาพในสภาพแวดล้อมที่มีความหนาแน่นของสัญญาณสูง ให้ความเร็วสูงสุด 2400Mbps

3,500 ฿ 4,890 ฿



  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5066(OC) MHz
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire Technology™
รหัสสินค้า: NS06122 หมวดหมู่: , , , ป้ายกำกับ: , , , , ,


Brand MSI
CPU Support Supports 10th Gen Intel® Core Processors, 11th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors 1

Processor socket LGA1200

Please go to intel.com for compatibility information.

Socket 1200
Chipset Intel® B560 Chipset
Memory Support
  • 4 x DDR4 memory slots, support up to 128GB 1
    • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
    • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
    • Max overclocking frequency:
      • 1DPC 1R Max speed up to 5066+ MHz
      • 1DPC 2R Max speed up to 4600+ MHz
      • 2DPC 1R Max speed up to 4266+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

Please refer www.msi.com for more information on compatible memory.

Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12

Available only on processors featuring integrated graphics

Graphics specifications may vary depending on the CPU installed.

Multi Graphic Support Supports 2-Way AMD® CrossFire Technology

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
Expansion Slots 2x PCIe x16 slots

Support x16/ x4

PCI_E1 (from CPU)

Support up to PCIe 4.0 for 11th Gen Intel® CPU

Support up to PCIe 3.0 for 10th Gen Intel® CPU

PCI_E3 (From B560 chipset)1

Support up to PCIe 3.0

1x PCIe 3.0 x1 slot

PCI_E2 (From B560 chipset)

PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.

Storage 6x SATA 6Gb/s ports (from B560 chipset) 1

2x M.2 slots (Key M)

M2_1 slot

  • Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
  • Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1
  • Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (From B560 chipset)

  • Supports up to PCIe 3.0×4
  • Supports 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready2

Supports Intel® Smart Response Technology for Intel Core™ processors


Intel® B560 Chipset

  • 1x USB3.2 Gen 2×2 20Gbps port (Type-C port on the back panel)
  • 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
  • 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector
  • 4x USB 2.0 ports on the back panel

USB Hubs ASM1074

  • 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel


  • 4x USB 2.0 ports are available through the internal USB 2.0 connectors
Internal I/O Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Tuning Controller Connector
  • 1x TBT connector (Supports RTD3)
Back Panel Connectors
  • USB 2.0
  • DisplayPort
  • USB 3.2 Gen 1 5Gbps Type-A
  • 2.5G LAN Port
  • Wi-Fi / Bluetooth Antenna
  • HD Audio Connectors
  • HDMI
  • USB 3.2 Gen 2×2 20Gbps Type-C
  • USB 3.2 Gen 1 5Gbps Type-A
  • Optical S/PDIF OUT
LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
Wireless Data Network

Intel® WiFi 6E AX210

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.21/2, FIPS, FISMA
  1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
  2. Bluetooth 5.2 will be ready in WIN10 21H1.
Form Factor ATX Form Factor
H/W MONITORING 9 mounting holes
Special Features N/A
Software Features N/A
Operating System Support Support for Windows® 10 64-bit

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Net Weight N/A
Package Dimension N/A
Gross Weight N/A
Volume N/A



Based on 0 reviews

0.0 overall

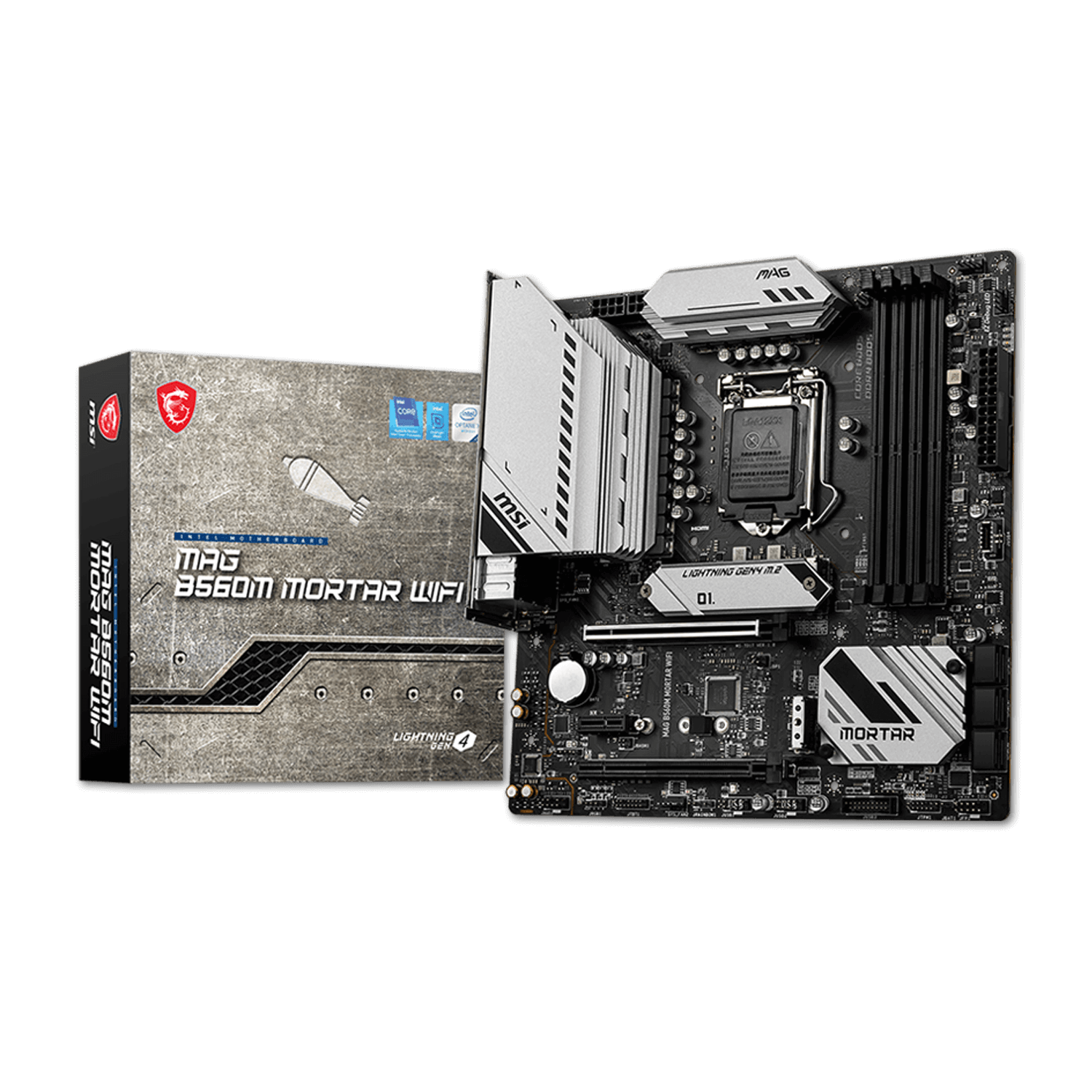

Be the first to review “MAINBOARD MSI MAG B560M MORTAR WIFI SOCKET 1200 (เมนบอร์ด)”
