MAINBOARD ASUS ROG STRIX H470-I GAMING SOCKET LAG 1200 (เมนบอร์ด)

Availability:

สินค้าหมดแล้ว
Add to wishlist
Compare

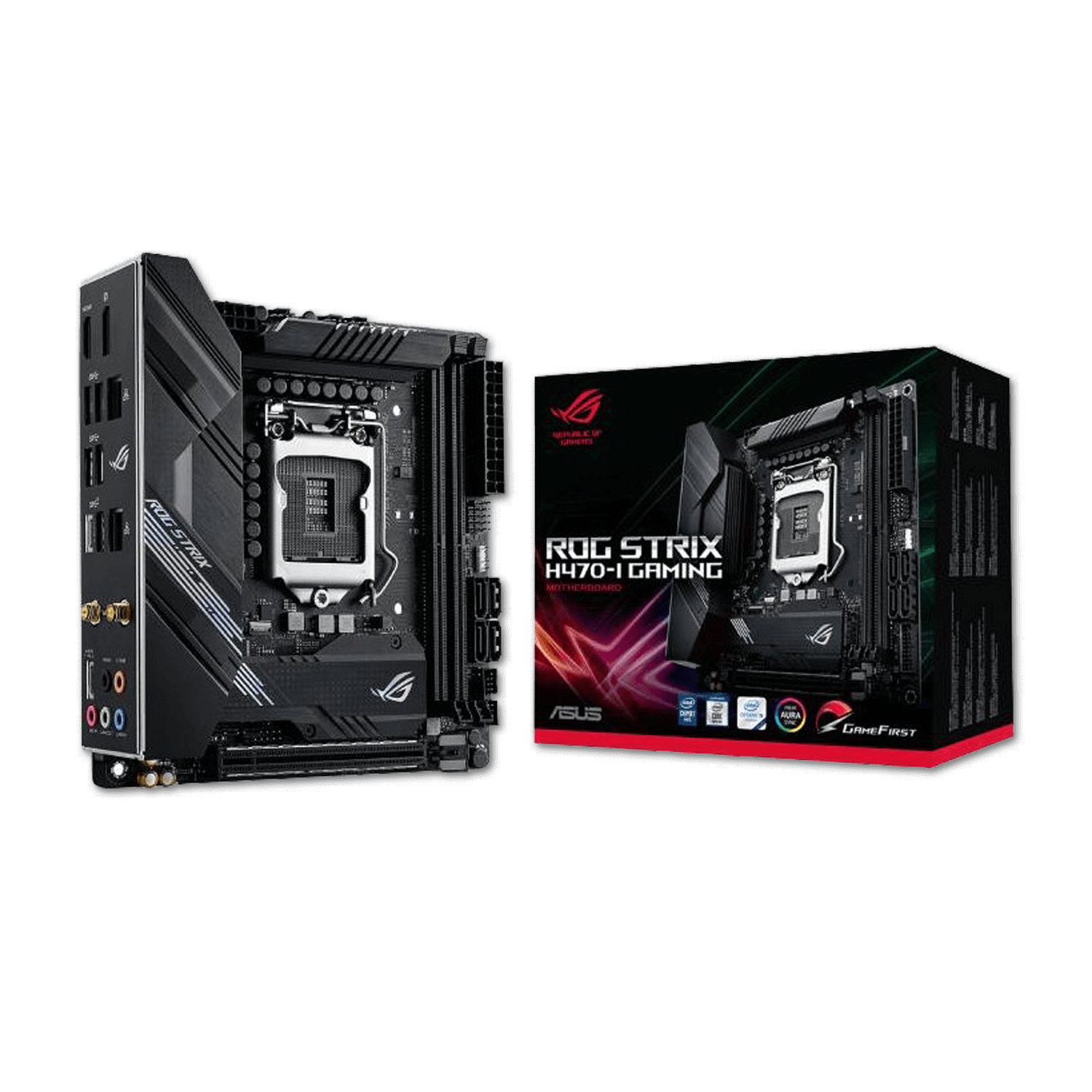

ASUS ROG STRIX H470-I GAMING

มาเธอร์บอร์ด ROG Strix H470-I Gaming นำเสนอพลังที่แข็งแกร่งและการระบายความร้อนที่มีประสิทธิภาพซึ่งออกแบบมาเพื่อรองรับโปรเซสเซอร์ Intel ® Core™ เจนเนอเรชั่น 10 รุ่นล่าสุด ด้วยสุนทรียภาพแห่งอนาคตและซอฟต์แวร์ ROG ที่ใช้งานง่าย ROG Strix H470-I Gaming ช่วยให้คุณได้เปรียบในการสร้างเกมในฝันของคุณ

ASUS ROG STRIX H470-I GAMING

TEAMED POWER STAGES
6+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

PROCOOL POWER CONNECTOR
The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

ALLOY CHOKE & CAPACITOR
Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

Post Views: 833
รหัสสินค้า: NS04885 หมวดหมู่: , , , ป้ายกำกับ: , , , ,

ASUS ROG STRIX H470-I GAMING SOCKET LAG 1200

การรับประกัน

2 ปี

คุณสมบัติ

Brand ASUS
Model ROG STRIX H470-I GAMING
CPU Support
Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® 14nm CPU
* Refer to www.asus.com for CPU support list
Socket LGA1200
Chipset Intel® H470
Memory Support
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Graphics
1 x DisplayPort 1.4 **
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
Integrated Graphics Processor
Multi Graphic Support None
Audio
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC
– Rear audio USB Type-C® port
– Premium Japanese audio capacitors
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality120dBSNR stereo playback outputand113dBSNR recording input
– Supports up to 32-Bit/192kHz playback
Audio Feature :
– SupremeFX Shielding™ Technology
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Expansion Slots
Intel® 10th Gen Processors
1 x PCIe 3.0 x16
Storage
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
USB
1 x USB 2.0 port(s)(1 x USB Type-C®)
Front USB Port ( Total 4 )
Rear USB Port ( Total 7 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 3.2 Gen 2 port(s)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Internal I/O Connectors
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Aura RGB Strip Headers
2 x M.2 Socket 3
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 with E key for Wi-Fi module
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Addressable RGB header
Back Panel Connectors
1 x Realtek RTL8111H 1Gb Ethernet
2 x USB 3.2 Gen 2 (red)Type-A + USB Type-CTM
1 x USB 2.0 *3
1 x Intel® I219-V 1Gb Ethernet
4 x USB 3.2 Gen 1
1 x DisplayPort
1 x HDMI
5 x Audio jack(s)
LAN
Realtek RTL8111H 1Gb Ethernet
Intel® I219-V 1Gb Ethernet
ASUS LANGuard
Wireless Data Network
Intel® Wi-Fi 6 AX201
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Up to 2.4Gbps transfer speed
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
H/W MONITORING N/A
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Special Features Extreme Engine Digi+
– 5K Black Metallic CapacitorsASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– ASUS Q-SlotASUS Thermal Solution
– Aluminum M.2 heatsinkASUS EZ DIY
– Procool
– Pre-mounted I/O shield
– SafeSlot

AURA Sync
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)

Rear audio USB Type-C® connector
Software Features [ROG Exclusive Software]
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus software[ASUS Exclusive Software]
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility:
-TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4
– EZ update
ASUS CPU-Z
DAEMON Tools
WinRAR[UEFI BIOS]
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Operating System Support Windows® 10 64-bit
Dimension N/A
Net Weight N/A
Package Dimension N/A
Gross Weight N/A
Volume N/A
