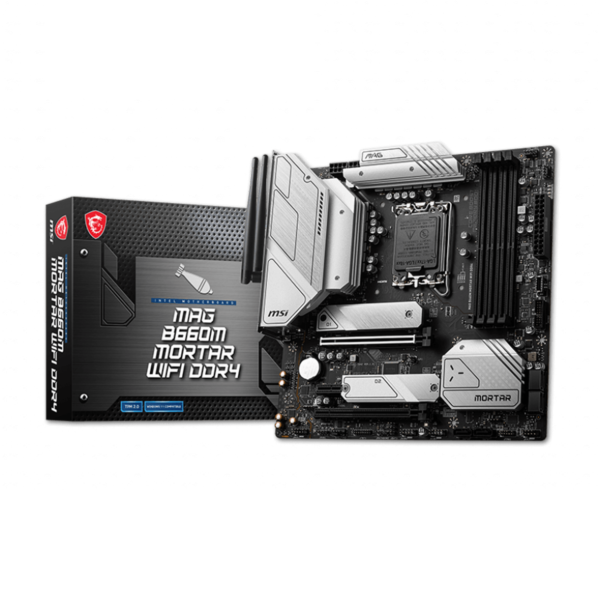

MAINBOARD MSI MAG B660M MORTAR WIFI DDR4 SOCKET 1700 (เมนบอร์ด)

Availability:

สินค้าหมดแล้ว


ด้วยโปรเซสเซอร์ของคอร์ที่มากขึ้น การออกแบบการระบายความร้อนและพลังงานจึงมีความสำคัญมากขึ้นเพื่อให้แน่ใจว่าอุณหภูมิจะต่ำลง ฮีทซิงค์ PWM แบบขยายของ MSI และการออกแบบวงจรที่ได้รับการปรับปรุงช่วยให้มั่นใจได้ว่าซีพียู Intel ระดับไฮเอนด์จะทำงานด้วยความเร็วเต็มที่กับมาเธอร์บอร์ด MSI

WIFI 6 ใช้เทคโนโลยี OFDMA และ MU-MIMO แบบสองทางล่าสุด และสามารถให้ความจุเครือข่ายได้ถึง 4 เท่าและประสิทธิภาพในสภาพแวดล้อมที่มีความหนาแน่นของสัญญาณสูง เมื่อเทียบกับ WIFI 5 ซึ่งสามารถส่งแพ็กเก็ตข้อมูลไปยังอุปกรณ์ได้ครั้งละหนึ่งเครื่องในแต่ละช่องสัญญาณ WIFI 6 สามารถรวมแพ็กเก็ต แยกเป็นหลายอุปกรณ์ และอนุญาตให้มีสัญญาณจากอุปกรณ์ต่างๆ ที่รวมเข้าด้วยกัน เทคโนโลยีใหม่นี้ทำให้อุปกรณ์ทั้งหมดในสภาพแวดล้อมเครือข่ายเดียวกันมีแบนด์วิดท์การรับส่งข้อมูลที่เหมือนกันและสอดคล้องกันอย่างมีประสิทธิภาพ



MSI MAG B660M MORTAR WIFI DDR4

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

MSI MAG B660M MORTAR WIFI DDR4

การรับประกัน

3 ปี

คุณสมบัติ

Brand MSI
Model MAG B660M MORTAR WIFI DDR4
CPU Support Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1

Processor socket LGA1700

Please go to msi.com to get the newest support status as new processors are released.

Socket 1700
Chipset Intel B660
Memory Support 4x DDR4 memory slots, support up to 128GB 1

Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 4800+ MHz

1DPC 2R Max speed up to 4000+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 3600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2

Multi Graphic Support Supports 2-Way AMD® CrossFire Technology
Audio Realtek® ALC1200 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Expansion Slots 2x PCIe x16 slots

PCI_E1 slot (From CPU)

Supports PCIe 4.0 x16

PCI_E3 slot (From B660 Chipset)

Supports PCIe 3.0 x4

1x PCIe 3.0 x1 slot

Storage 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1

2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)

2x M.2 slots (Key M)

M2_1 slot (From CPU)

Supports PCIe 4.0 x4

Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (From B660 Chipset) 1

Supports PCIe 4.0 x4

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Supports Intel® Optane™ Memory

SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

USB Intel® B660 Chipset

  • 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
  • 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
  • 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
  • 4x USB 2.0 ports on the back panel

USB Hub-GL3590

  • 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

USB Hub-GL850G

  • 4x USB 2.0 ports available through internal connectors
Internal I/O Connectors 1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C connector

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

2x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

1x TBT connector (supports RTD3)

1x Tuning Controller connector

Back Panel Connectors USB 2.0 Port

DisplayPort 1.4

USB 3.2 Gen 2 10Gbps Type-A

2.5G LAN Port

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

HDMI 2.1 Port

USB 3.2 Gen 2×2 20Gbps Type-C

Optical S/PDIF OUT

LAN 1x Realtek® 8125BG 2.5Gbps LAN controller
Wireless Data Network Intel® Wi-Fi 6

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2

Form Factor Micro-ATX Form Factor

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

H/W MONITORING N/A
BIOS N/A
Special Features N/A
Software Features N/A
Operating System Support Support for Windows® 11 64-bit, Windows® 10 64-bit
Dimension N/A
Net Weight N/A
Package Dimension N/A
Gross Weight N/A
Volume N/A
